CTF inkjet vs Photo film
       A matured new application for film making
     (Up to 175 lpi 1% dot reproduction good for color jobs)


Hilson Huang / NozzleBlack CEO

Although CTP (Computer To Plate making) is widely used in offset printing  industry for years, but it is not all of the offset printers are using this CTP system. Conventional offset printing machine still needs to make positive film first for PS plate image exposure. How can these conventional offset printers are able to enjoy this new digital inkjet technology for their plate making especially when photo film is facing termination and price of it is getting higher and higher day by day due to fewer and fewer photographic film manufacturer in the market.

By using photo film, the expensive investment of equipment such as image setter, film processor are too huge a sum for them to put in, though second hand CTP machine retired from offset is cheaper but it is facing another problem: termination of production and discontinuing supply of parts ... which means not only no more hardware maintenance but also any after service is available.

This will be a nightmare for all existing photo film users which they have to face in near future before it is too late. Fortunately, due to new technology of inkjet nozzle development with improved RIP software for fine dot reproduction the inkjet film making is ripe and mature for the industry now. Users only have to do more adjustment of their mind that black image is no longer to be made by photographic film any more.

No more developer, no more fixer (no chemicals) with no expensive investments for equipment as well as maintenance and electric power consumption, most important advantage is that due to use of no chemical it is very green and friendly to our environment.

Case 1
There is an offset printing factory YF in Tainan which is in the south part of Taiwan, they relied on outsourcing of film to make PS plate for their Roland 200 / Roland 700 and Komori S40 printing machine. Now they are using NozzleBlack inkjet printer making their own film with NozzleBlack PS-RIP software since beginning of 2014, doing wonderful jobs in big size (and the size is accurate in registration) at very low cost for their routine works, the boss is very happy with this inkjet film making system.

This big size printer operate with NozzleBlack PS-RIP special and fine image forming technology can accept HQ-RIP with 1 bit TIFF signal through ink drop control from Adobe in order to distribute ink accurately on film in accordance with the size directly. The size can be from A4 to 1118mm in width and limitless in length.

Case 2
SH is a plate trade shop in New Taipei city, they have relied on out sourcing of the negative film for a long time so they have paid much more attentions to the inkjet CTF. But the fact they have seen is that when the printer works smoothly, it is good, but once it break down there comes the problem and almost has to stop for a long time. The reason is that most of the system sold in the market:
printer / RIP / ink / film always happen different problem and separately, there seems no one is integrated all together in a package.

Mr. Su, the boss with his wife they want very much to have their own CTF system for film making. Now they are having the concordance from a vender who supply with RIP / Ink / Film which are all certificated by the printer maker,
When Mr. & Mrs. Su are enjoying the quality negative as good as photo film with high opaque black density made by them self, meantime they are also enjoy the wonderful after sales service from the printer dealer for they are using all the materials certificated by the manufacturer. Now they do not have to worry about printer out of order or break down at all.

Case 3
WG co. is a color label printer especially for electronic field which is a most quality demanding printing job of 175 lpi and 1% reproduction in label industry, due to heavy investment of a digital CTP equipment and peripheral machine, they do not want to invest so much.

RIP of NozzleBlack is created by a group of engineers who have at least 20 years of practical experience of color separation and screening who knows what are the difference and important points for an inkjet film user from the beginning when they organize the software in addition to the fine dot reproduction and sharp image. The boss Mr. Tsen is very happy with the results of negative made by inkjet printer now.

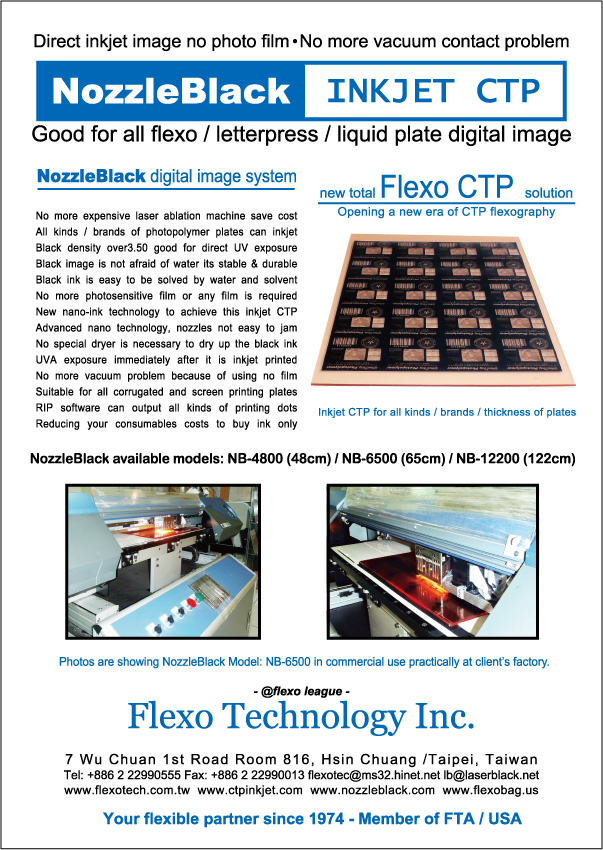

@flexo CTP open a new era of photopolymer plate making

Vacuum contact problem with air in between negative film and plate is always a

nightmare for photopolymer plate making over 80% of defected plate which make

image not sharp and clear and become not usable because of this.

CTP inkjet make direct image on plate can solve this problem 100% in addition due to

no more vacuum procedure is required, therefore the procession time can be reduce

over 20 minutes of escaping air and drawing down time.

more...





zoom+



zoom+





zoom+





Due to NozzleBlack, its easy to inkjet black image with density
over 3.50 on tracing paper and any non-coated film as a negative
for plate exposure.

RD team of @flexo league has tried to print it on photopolymer
plate directly as CTP plate (Computer To Plate) and find the result
is good and vacuum is not required any more.

In China Print 2013, @flexo is announcing this new total solution of
CTP inkjet system at booth E12-062 welcome your visit. A rival in
the industry gives comment this CTP inkjet may open a new era of
future flexo plate making.

more...

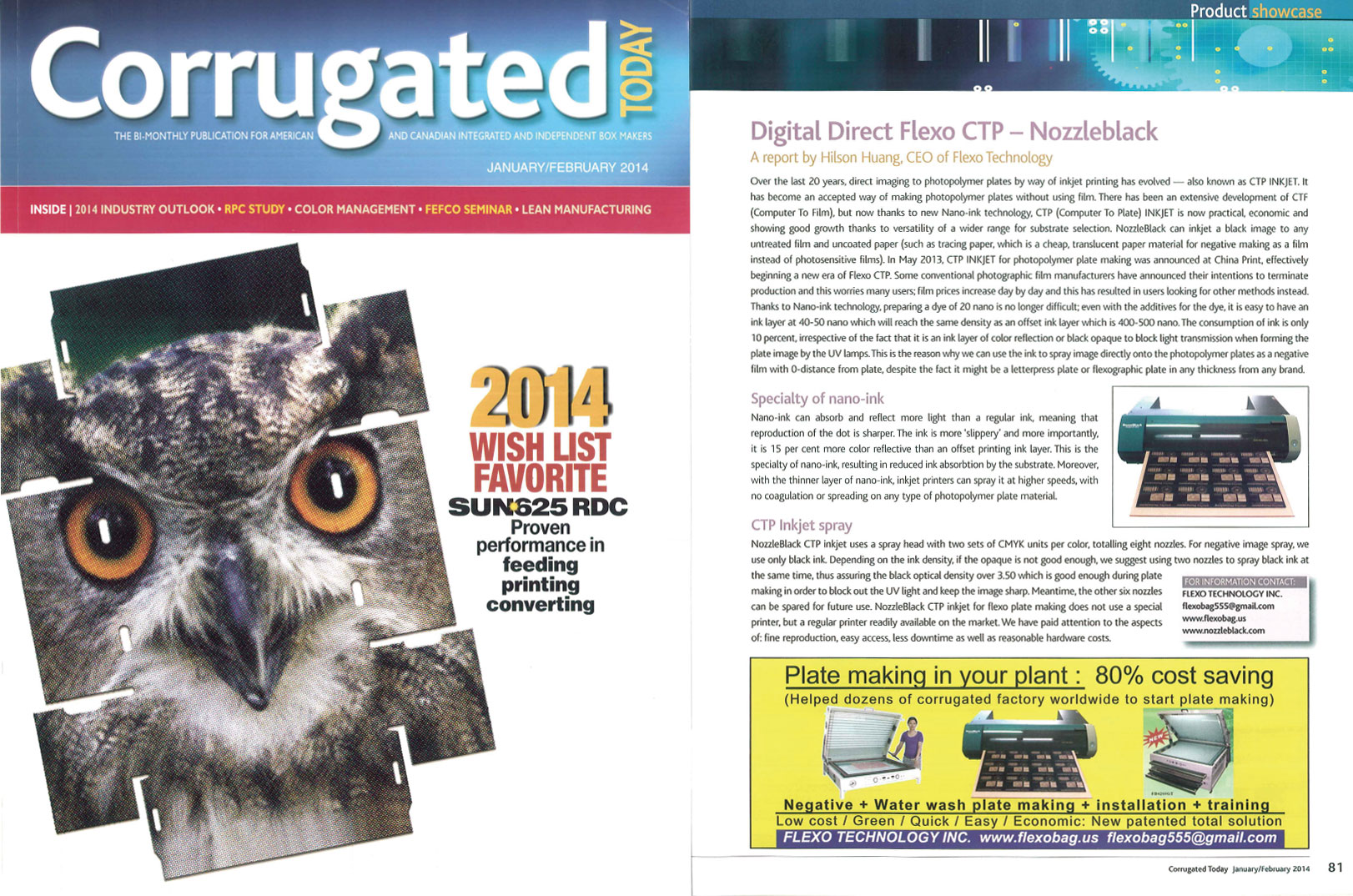

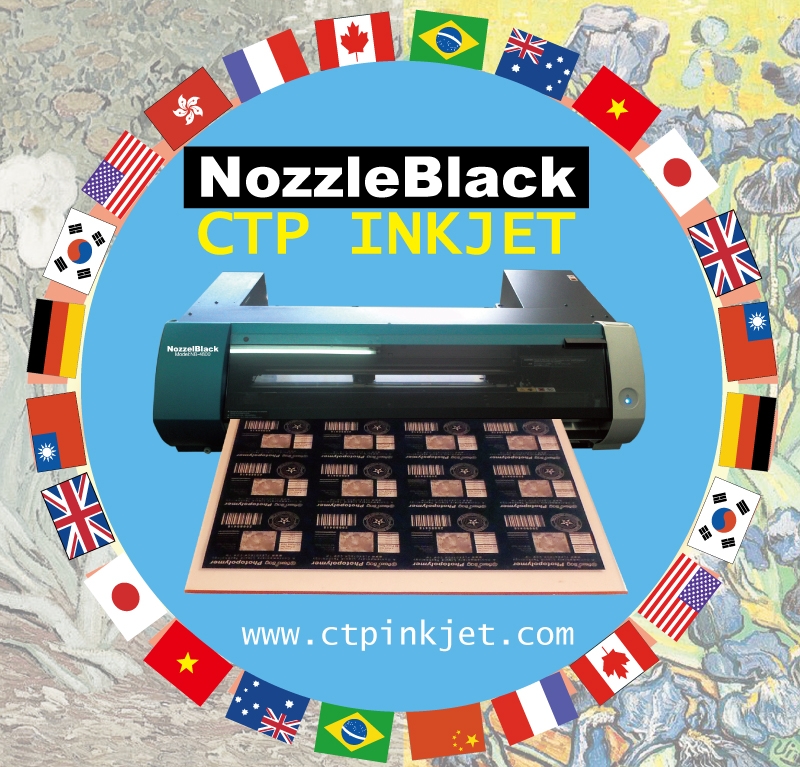

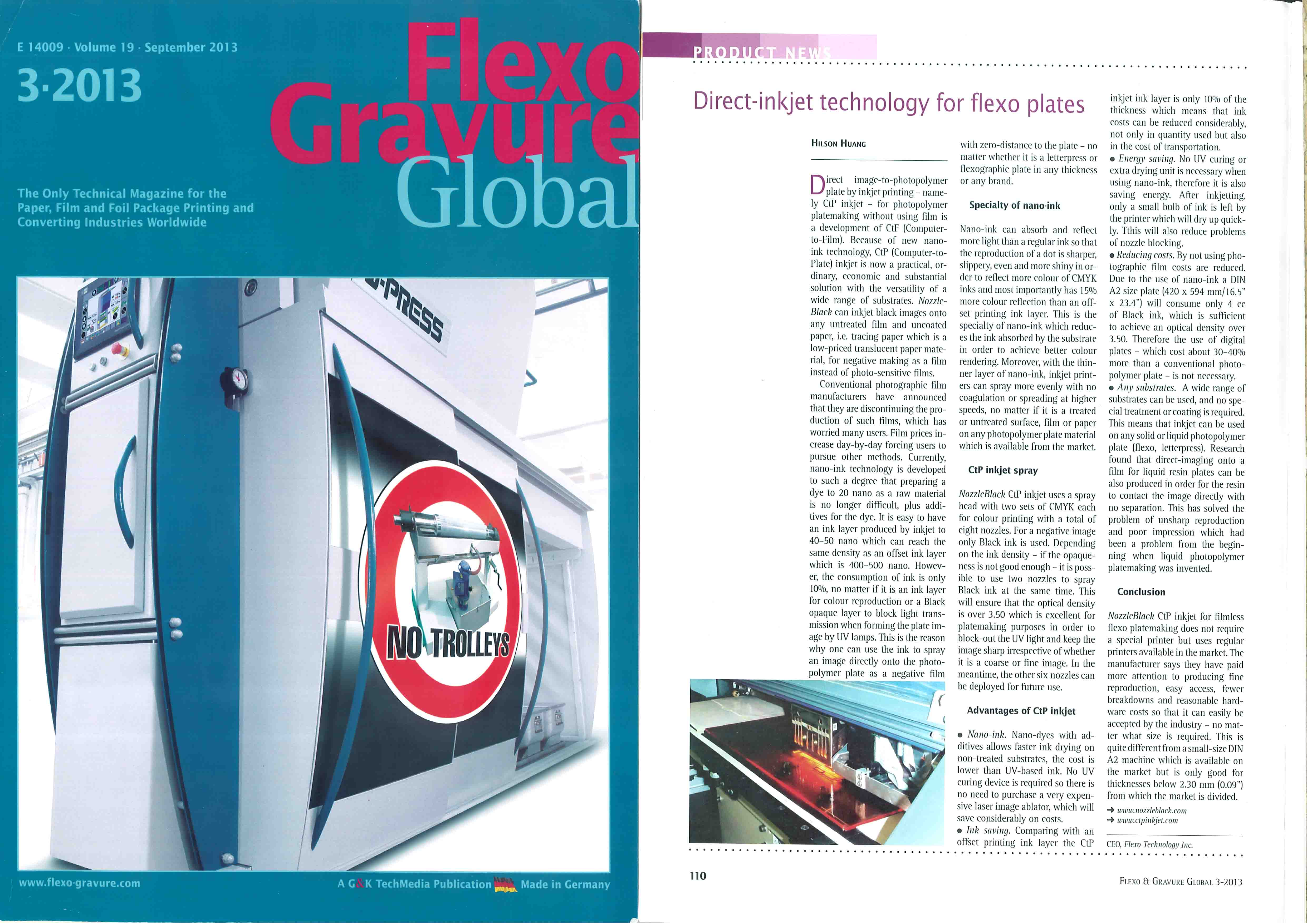

NozzleBlack digital direct inkjet – Flexo CTP

Hilson Huang / CEO - Flexo Technology

In May 2012 during Drupa, a new machine of digital inkjet printing press was shown and have been commended as a great innovation after Mr. Johannes Gutenberg had invented a printing press. As a matter of fact it was derived from electronic image forming technology by liquid electro-ink method in 1993 during IPEX, by using magnetic field reaction to form an image on a roller then transfer to paper or substrate.
After 20 years, direct image to photopolymer plate by inkjet printer – CTP INKJET for photopolymer plate making without using any film is also becoming popular.

Actually, this is an extensive development of CTF (Computer To Film), due to new Nano-ink technology, CTP (Computer To Plate) INKJECT is now practical, ordinary, economic and substantial with more versatility of wider range for substrate selection. NozzleBlack can inkjet black image to any untreated film and uncoated paper as tracing paper which is a cheapest translucent paper material for negative making as a film in stead of photosensitive films. in May 14-17 2013, CTP INKJET for photopolymer plate making was announced in China Print by which a new era of Flexo CTP is opened.

Conventional photographic film manufacturers have announced to terminate their production, this has scared most of the users, film price increase day by day thus has forced consumers to pursue other methods in stead. Due to Nano-ink technology, nowadays to prepare a dye in 20 nano as raw material is no longer difficult, plus additives for the dye, it is easy to have a ink layer by inkjet at 40-50 nano and reaching the same density as offset ink layer which is 400-500 nano, however the consumption of ink is only 10% only, no matter it is an ink layer of color reflection or black opaque to block light transmission when forming the plate image by UV lamps. This is the reason why we can use the ink to spray image directly on the photopolymer plates as a negative film with 0-distance with plate, despite it’s a letterpress plate or flexographic plate in any thickness from any brand. www.ctpinkjet.com

Specialty of nano-ink

Nano-ink can absorb and reflect more light than a regular ink so that reproduction of a dot is showing sharper, slippery, even and more shining in order to reflect more colorful areas of YMCK inks and most important is 15% more color reflection than an offset printing ink layers. This is the specialty of nano-ink which is reducing ink absorbed by the substrate in order for shining up more colorful. Moreover, with thinner layer of nano-ink inkjet printers can spray it at higher speed, no mater it is a treated or untreated surface, film or paper with no coagulation or spreading at all or even on any photopolymer plate material which is available from the market.

CTP Inkjet spray

NozzleBlack CTP inkjet is using a spray head with 2 sets of YMCK each for color printing in total of 8 nozzles. For negative image spray we use only K ink in black color. Depends on the ink density, once the opaque is not good enough then we suggest to use 2 nozzles to spray K ink at a time, thus will assure the black optical density over 3.50 which is excellent enough during plate making in order to block out the UV light and keep image sharp despite of it is a rough image or fine image. Meantime, the other
6 nozzles can be spared for future use.

Advantages of CTP Inkjet

˙Nano-ink
Nano dye with additives can allow ink drying quickly on non-treated substrates, the cost is cheaper than UV based ink and no UV curing device is required so as to purchase a very expensive laser image ablator, which will save you a lot from hardwares.??
˙Ink saving
Comparing with offset printing ink layer the CTP inkjet ink layer is only 10% in thickness which means that ink cost can be reduced a lot not only in consuming quantity but also cost of transportation.
˙Energy saving
No UV curing or extra drying unit is necessary when using nano ink, therefore it is also saving energy, after inkjet only a small bulb on the printer will dry up the ink quickly, this will also reduce problems of nozzle blocking.?
˙Reducing costs
Use no more photographic film so the film cost is reduced. Due to use of nano ink a A2 sized plate will consume only 4 cc of black ink but able to achieve optical density over 3.50. Thus will not have to use Digital plate any more which is about 30- 40% cost up than a conventional photopolymer plate.
˙Any substrates
Wide range of substrates can be used and no special treating or coating is required therefore, can inkjet on any letterpress plate, flexographic plate, water wash flexo plate as well as for liquid photopolymer plate making. RD team finds that direct image on film for liquid resin spreading can be also sprayed in order for resin contact directly to the image with 0-distance. This has solved no-sharp-reproduction bad impression from the beginning when liquid photopolymer plate making technical had been invented.

Conclusion

NozzleBlack CTP inkjet for flexo no film plate making is not using a special printer but a regular printer which you can get from the market only we have paid more attention to the portions of: fine reproduction, easy access, less breakdown as well as reasonable hardware cost so that it can be accepted by the industry easily no mater how big size is required. This is quite different from a kind of small size A2 machine available in the market but only good for thickness less than 2.30mm from which the market is divided.

In summarizing, a new era of CTP inkjet for photopolymer plate making is opened right after the China Print show in 2013, as Jessica Harkins reported on the Flexo magazine there is a wide array of people will make up the flexographic industry, business owners, design partners, creative brains, old-school fundamentalists, young techs and everyone in between will work together to make flexo industry stronger. NozzleBlack is expecting here the flower blossom. www.nozzleblack.com

    @flexo CTF / CTP PRINTER  SPECIFICATIONS

NozzleBlack Models				NB-1080	NB-0610
Printer Technology				Drop-on-demand Micro Piezo Inkjet Technology
Print Head Nozzle Configuration				180 nozzles x 8 lines
Print Height Adjustment				1.20mm-2.00mm
Ink cartridge			Ink Types	NozzleBlack Nano Black Ink (k)
			Capacity	220 ml Cartridge (+-5%)
Maximum Media Width				1.080 mm		610 mm
Minimum Media Width				150 mm
Media Thickness				0.30mm ~ 1.30 mm (CTF) 0.50mm-7.00mm (CTP)
Maximum Roll Media Weight & Media Core Diameter				19 kg / Φ 150 mm (3 inch core / 2 inch core)		5 kg /Φ 100 mm (3 inch core / 2 inch core)
Maximum Print Width				1.074 mm		604 mm
Print Margin				3 mm (front) / 3 mm (Back) / 3 mm(Left / Right)
Print Resolutions				1440 dpi / 720 dpi / 360 dpi
Maximum Production Speed (※1)				A1 size Printing : 33 seconds
Interface				Ethernet 100BASE-TX/10BASE-T
Printer Language				MH-GL,MH-GL2.MH-RTL +ALL GRAPHIC SOFTWARE
Memory				256 MB
Drying Heater				Adjustable up to 40 degree C
Power supply				AC100-240 +-10% (50 / 60 Hz)
Power Consumption		Power OFF		1 W
		Operation		100 W
Noise Level				67.7 Db
Operating Environment				Temperature 10~350c / Humidity 40~60%
Certifications				MET(USA),  CE(EU), FCC(USD),  VCCI(JAPAN),  RoHS(EU), CB REPORT
Dimensions (W x D x H)				(W) 1.772 mm x (D)504 mm x (H) 983 mm			(W) 1.192 mm x (D)504 mm x (H) 357 mm
Printer Weight	Body			45.0 kg			30.5 kg
	Stand			16.5 kg			12.5 kg
Packing Dimension	Body			(W) 1.905 mm x (D)630 mm x (H) 581 mm			(W) 1.343 mm x (D)652 mm x (H) 510 mm
	Stand			(W) 1.510 mm x (D)435 mm x (H)260 mm
	G/W			90 kg			70kg







An inkjet black enhancing system “NozzleBlack” has been created for big format negative making.

The black density can reach 3.50 and quality is as well as LaserBlack which is good for photopolymer

plate making of long time exposure. The width is from 48 / 65 / 122 cm x limitless in length.

By using contemporary technology of nano-ink, “NozzleBlack” is now available in

high black density and can be printed on any untreated film or tracing paper (vellum) as you like in

order to save your film cost, no special media or special coating film is necessary any more.

Now with this new “NozzleBlack” system, you can have your negative as big as you like and the

cost is only 25% to 30% of the photographic film (image setter film). Now you can really say

good bye to photo film. more...





LaserBlack LB – Spray – Kit

In order to have enhanced service to small negative film required card, tag, label and stamp makers, LaserBlack has newly introduced its younger brother LB–Spray-kit and put it into on-line-shop. The LB–Spray-Kit is including 500 cc of LaserBlack Solution with a micro spray bottle to fill, a quick black gun to dry and tracing paper in order for buyers to start making negative at opaque density dark enough right the way after receiving the kit.

The result from this spray is as good as from a LaserBlack Enhancer no matter it is a printon tracing paper or transparent film. No use of aerosol gas therefore it will not 80% go to air and only 20% in use any more. This is a cheapest way of negative film making method for the printing industry.

LaserBlack Solution is water base, please use tap water to wash off your hand after the process. Low evaporation, non toxic, not harmful to your health. Do not use high pressure gas, non explosive and solving problem of high cost of transportation.

Welcome to upgrade to use LaserBlack Enhancer in order for making negative film more cheap, more quick, more smooth, efficiently and perfectly during this period of time lacking of photographic film.

www.laserblack.net • lb@laserblack.net





Paper World 2012 / Shanghai China







On September 19-21 @stampBag and LaserBlack have shown

successfully in Shanghai at Taiwan Pavilion.

During the exhibition we have first announced our @stampBag A7 kit which is an economic package for stamp making with machine and materials good for 200 pieces of 8 x 10 cm stamps and exposure machine can be reuse for long.

@StampBag is an innovative way which is economic and convenient

method to make stamp by photopolymer resin-in-bag after exposure just washout by water. A stamp with any design can be made within 15 minutes while your client is waiting.

LaserBlack is a quick way to make a negative film just from your HP laser printer then go through this enhancer in 3 minutes you can have your negative film ready for exposing. Combination of @stampBag and LaserBlack is also good for DIY and educational purpose. For more details please visit www.stampbag.net .





Feedback from customer

in South America

Good day!  I want to comment to you that we have been working very well all the time with flexo making plate you sold us since 2010 and also plates have a good quality and they are more flexible than former plates we had before.

  The HP 5200 A 3 printer which we have bought from you is working very well with your LaserBlack Enhancer which enable us to make our own negative film any time in our factory at very low cost and it is very convenient.

  As to the Model @A2SSF flexo plate making machine, which is also performs very nicely of all the functions : Exposure + Washout+ Drying + Anti-tack treatment 4 in 1. Due to all stainless steel made, it looks as new as the time we have bought it two years ago.

  This time I want ask you quote us sheet @flexo plates like last time.  Please quote all goods price under C&F Arica, Chile in American dollars, we will take insurance from Taiwan to Bolivia, please do not don't worry about it although we know the freight maybe expensive, but we still like to buy from you.



  We appreciate very much that only you can provide the

total flexo plate making solution for our one-stop shopping

requirement including: prepress + materials + plate + equipment in once and one shipment.

Thank you once again and have a nice day.

Best regards,

Marcelo Lizarazu Orellana

FIMAR LTDA.

Tel: 591-2-5249985/5242613

Oruro , Bolivia . (110831)







Celebration of 10000 units – extra gift sale

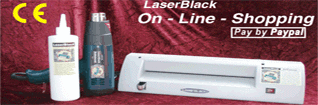

ON-LINE-SHOP SPECIAL

LaserBlack International is celebrating 10000-units sell of their LaserBlack enhancer since first announcement at 2002 SGIA Show in Mississippi St. Louis USA .

The black density enhancer is a simple idea to coat a solution all over a toner printed page which is printed on a tracing paper (vellum) or film by a laser printer.

After drying the coated solution is melting the toner and become a black layer upon the image area without any diffusion so that opaque density is enhanced 300-400% which is good enough for any kinds of plate making and its as good as a photographic film or a film outputted from an image setter.

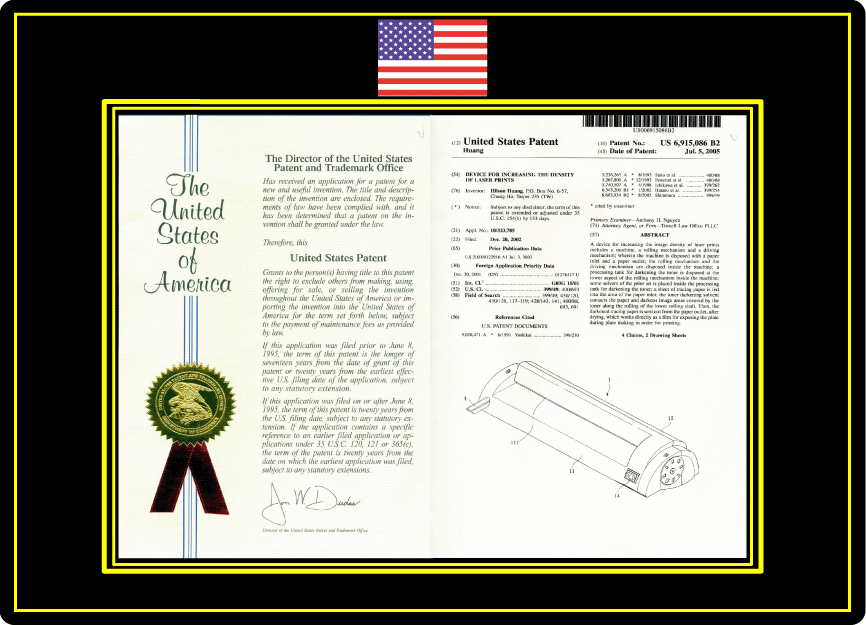

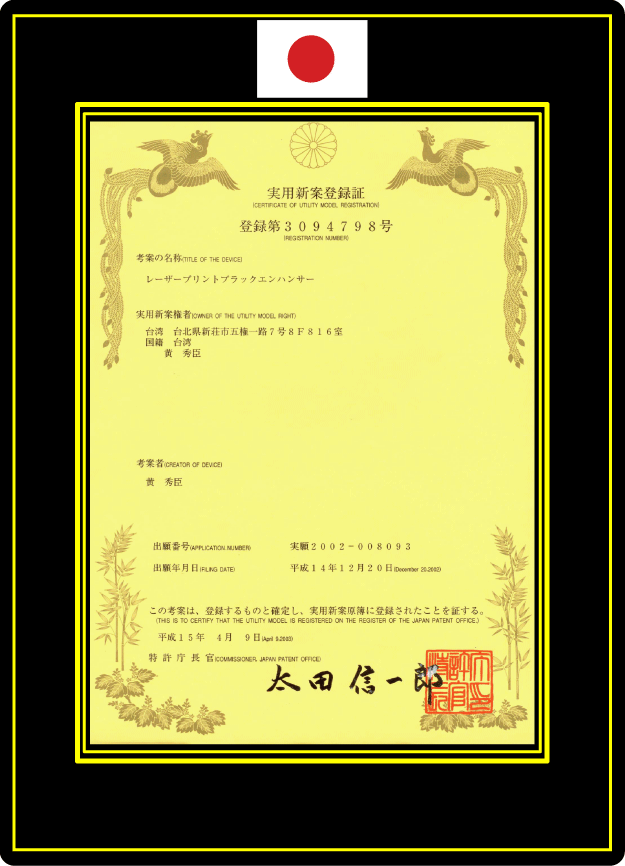

This unique enhancer has been granted inventions / patents in 35 countries and has been exported to 65 countries including developed countries, developing countries and under developed countries.

All the users are happy to have this simple and easy unit as their personal image setter, especially when it is very convenient and economic to make negative / positive film for label / news paper / screen / bag / corrugated board printing and stamp making.

Now they are running a campaign of “ 10000-units celebration special” with extra gift

for on-line shopping. All kits are including the enhancer A4 / A3, a Quick-Black dryer and 500CC of LaserBlack-Solution which can process 1000 sheets of A4 or 500 sheets of A3. Plus extra gift of 500CC to make it 1 liter now.

www.laserblack.net lb@laserblack.net





How is Laser Black Enhancer used as negative for @flexoBag System plate making.

(Seminar of @flexoBag System was held during Tigax exhibition period in October 2010.)



Laser Black Enhancer is providing low cost negative film for @flexoBag plate making.

(Hilson Huang, CEO of FTI is delivering a speech of @flexoBag system by presenting a DVD.)





Combinating with Laser Black, now @flexo plate maker Model EZ A4 is available
On Line for making Letterpress,flexo and liquid photopolymer plates for label,
form, card,tag, PAD printing and stamp making.Now you can make your own negative
film and plates by yourself at very economic investment at high productivity,
to save time, labor and money. Click to get Shop Special from here.





Innovative negative making machine for all kind of plate making,
Laser Black Enhancer is conducting its 5000 units sale campaign.
Welcome to our exhibitions of Sino Corrugated 2009 Shanghai
and China Print Beijing to be our 5000th user with special offer.





Sino Corrugated : April 7 -10,  Hall  E5-Y160  Shanghai International Exhibition Center
China    Print : May 12 -16,  Hall  W3-073  Beijing New International Exhibition Center
Topics: Newly developed and patented FlexoBag plate making system by Liquid photopolymer.
Live demonstration water-base plate making to reduce 50% of cost and protect your life.





MY IMAGESETTER --- Recently imagesetter film price is going up and up no matter it is the made by your own or relied on film outputting service cost, therfore we have found the demand of our Laser Black Enhancer has appreared increasing and increasing.

We heard from many film manufacturers that  due to material price increased continuously, they are quiting the production of photographic film for negative / positive making and the cost of this film will be going higher and higher in the future.

LB-Enhances are very acceptable by the screen printers for this is the most economic and quick way of geting a film for plate making from your own laser printer ---- AS YOUR OWN IMAGESETTER.

Many conventional gravure cylinders and plate makers told us that it is very convenient for them to prepare the film for their plate making from Laser Black Enhancer due to price up of the film and film outputting services. Their jobs are from pad printing plates to film package printing cylinders.

Corrugated board printing plate makers love Laser Black Enhancer in A3 size very much due to convenience of their negative making and use no camera any more, therefore in many areas like in Taiwan and China almost every corrugated plate maker have one unit of LB-Enhancer with them, time and money saving are the reasons why they like Laser Black System so much.

Label printers like to have Laser Black Enhancer in A4 size for they can use either tracing paper or vellum or transparent film to make negative printed from a laser printer then enhanced by Laser Black to have teir own film to make plate quickly. For color separantion jobs, they may rely on imagesetter service to do it for them because it is too expensive.

For small label printers this is a good way to save time and money in order for plate ready to print, to have a small unit of plate making machine making their own plate for letterpress or flexographic printing is a must for them to reduce their time and cost is becoming a trend in the world.

From all these points of view, it is not the question of Laser Black System can be used by you or not, it is depends on you to use it immediately to save time and money, the quicker you decide it will save you much more. Again for the critical jobs, you may rely on out sourcing.





	COMPANY		COUNTRY		COMPANY	COUNTRY
1	Polymung Bag Manufacturing		South Afica		BELARUS	RUSSIA
2	S.C. Auradan		Romania	94	UNITED	Bahrain
3	GJS Machinery		Australia	95	SAKARYA	TURKIYE
4	ADANCE		USA	96	Union Inks	Philippines
5	A.P. Zeefdruktech		The Netherlands	97	Aslanidis	GREECE
6	ADANCE		USA	98	ELFAYROOZ	EGYPY
7	CF CARD		Malaysia	99	Colour	Australia
8	Caesar Pac		Kuwait `	100	Kyriakos	GREECE
9	USAHA SHANLAI		Indonesia	101	VASCO	HUNGARY
10	HANKOOK		Korea	102	GREEN	IRAN
11	P.T. BALI MAS		Indonesia	103	PARSIAN	IRAN
12	UTOMO		Indonesia	104	FLEXOGRAFF	BRAZIL
13	CF CARD		Malaysia	105	ADNACE	USA
14	WIHANI GROUP		Indonesia	106	COLOUR	Australia
15	CF CARD		Malaysia	107	IF	India
16	PT.BINTANG		Indonesia	108	GREENPNS	Korea
17	NUMRUNG		Thailand	109	MATHIAS	Bahrain
18	REPRO VISTA		Indonesia	110	JENTAT	Malaysia
19	PT. MASTER		Indonesia	111	CPH	Switzerland
20	PT. Nusantara		Indonesia	112	GREENPNS	Korea
21	CMT		Mauritius	113	IF	India
22	PT. BINTANG		Indonesia	114	Flexo Printing	South Africa
23	ADANCE		USA	115	VASCO	HUNGARY
24		VASHNAVI	INDIA	116	ADNACE	USA
25		SHRESTHA	NEPAL	117	ALTER	ARGENTINA
26		Zion of Printing	Korea	118	ABS	Malaysia
27		Grapack Asia Inc	Philippines	119	CF CARD	Malaysia
28		MEGA	Malaysia	120	GALAXY	Cyprus
29		HANI FLEXOGR	Korea	121	ADNACE	USA
30		Graptec	Singapore	122	IF	India
31		AL RIZQ	U.A.E.	123	HNB	Korea
32		ADANCE	USA	124	KEBEDE	Ethiopia
33		Mili Plastic	Malaysia	125	DKSH	Indonesia
34		Grapack Asia	Philippnes	126	TIME	Thailand
35		CF CARD	Malaysia	127	ADNACE	USA
36		ADANCE	USA	128	COLORPAK	Papua New

37	LEADMAN	Singapore	129	ARAPOUSH	IRAN
38	Graphic Systems	Bangladesh	130	George	U.A.E
39	ADANCE	USA	131	HAND	Austria
40	CF CARD	Malaysia	132	Trinity	H.K.
41	CENTRAL	Jordan	133	Graphic	Bangladesh
42	MEGA	Malaysia	134	OTO	Simonova
43	TechNova	India	135	COPYWARRIOR	GERMANY
44	PAD	ESPANA	136	PUPPERT	GEMRAMY
45	TRIANGULAR	Saudi Arabia	137	CAMSTAT	Canada
46	R N VASWANI	India	138	GEORGE	U.A.E.
47	Zion	Korea	139	KDS	Poland
48	GMS	Australia	140	CV	Indonesia
49	Egmont	India	141	CHRISTER	SWEDEN
50	ADANCE	USA	142	ID	Belgium
51	Benny	ISRAEL	143	NOBEL	Malaysia
52	Zion	Korea	144	ROYAL	Philippines
53	CPB	Germany	145	UGYV-SZERV	HUNGARY
54	ADANCE	USA	146	PRINTY	Poland
55	Mapal	Israel	147	CODPRESS	Mongolia
56	Graphic Systems	Bangladesh	148	FUM	Philippines
57	Lithomecanmica	GREECE	149	Lisner	Israel
58	Zimco	Lebanon	150	PRINTY	Poland
59	WDH TUNG	HongKong	151	TAISAL	Vietnam
60	POLYDLAM	England	152	ABS	Philipines
61	CPB	Germany	153	DPJ	Sri Lanka
62	CPB	Germany	154	PT. TOSI	Indonesia
63	CHOKE	Thailand	155	Printrans	Malaysia
64	ADNACE	USA	156	HWD	Germany
65	MOHAN	India	157	GEORGE	U.A.E.
66	CHOKE	THAILAND	158	SUPERIOR	Macedonia
67	Y.POLAD	ISRAEL	159	BELL	Israel
68	PERAL	EGYPT	160		Germany
69	FG	CROATIA	161	Gravure	THAILAND
70	UNITED	Bahrain	162	Scott	USA
71	PONGER	ISRAEL	163	Voraustechnik	MALAYSIA
72	NETA	ISRAEL	164	ADNACE	USA
73	BEN	Austraila	165	Walcar	Australia
74	RIMO	Switzerland	166	Nesta	CROATIA
75	ADNACE	USA	167	IP IGNATOV	RUSSIA
76	Prelude	ISRAEL	168	NORWAY	NORWAY
77	Ballon	Switzerland	169	COLOTH	Greece
78	Embassy	Isreal	170	ZENITH	INDIA
79	NNP	Thailand	171	COLOP	Austria
80	Dragon	Mauritius	172	ALEX	Kazakhstan
81	PRINTY	Poland	173	MICHELE	ITALY
82	PIONEER	U.A.E.	174	COLOP	Austria
83	Apparel	Canada	175	JIRIANI	PANAMA
84	Fuxin	Thailand	176	DICKSON	Australia
85	Fuxin	Thailand	177	Rohit	U.S.A.
86	Martin	Germany	178	MaryAnne	U.S.A.
87	Labelqwik	South Africa	179	COLOP	Austria
88	COLOUR	Australia	180	Hodod	Saudi Arabia
89	COLOP	Austria	181	Darbest	Morocco
90	CHRISS	Australia	182	FIMAR	Bolivia
91	COLORPARK	New Guinea	183	MARK	U.S.A.
92	FUXIN	Thailand	184	COLOP	Austria
93	MATIC	Jordan	185	Marcos	U.S.A

186	Jipushen	S H
187	HNOS	SPAIN
188	Zerba	Slovenia
189	TORPEDO	FRANCE
190	MaryAnne	U.S.A.
191	Glowboy	Australia
192	Graphic	Bangladesh
193	The printed	Canada
194	FORPEDO	FRANCE
195	Work	ITALY
196	Toyoda Stamp	Japan
197	GHASSAN	Lebanon
198	Phose	Korea
199	KLASS	Russia
200	KESTON	Philippines
201	SITOM	Slovenija
202	FADI	Lebanon
203	WOONG	Guatemala
204	ABDUL	UAE
205	COLOUR	Australia
206	I.L.	Israel
207	RORP	France
208	VOJKAN	Serbia
209	AI	UAE
210	MP	Singapore
211	AMS	Germany
212	ACME	Australia
213	PATRICIA	U.K.
214	LA	Bolivia





Laser Black using for Label printing………

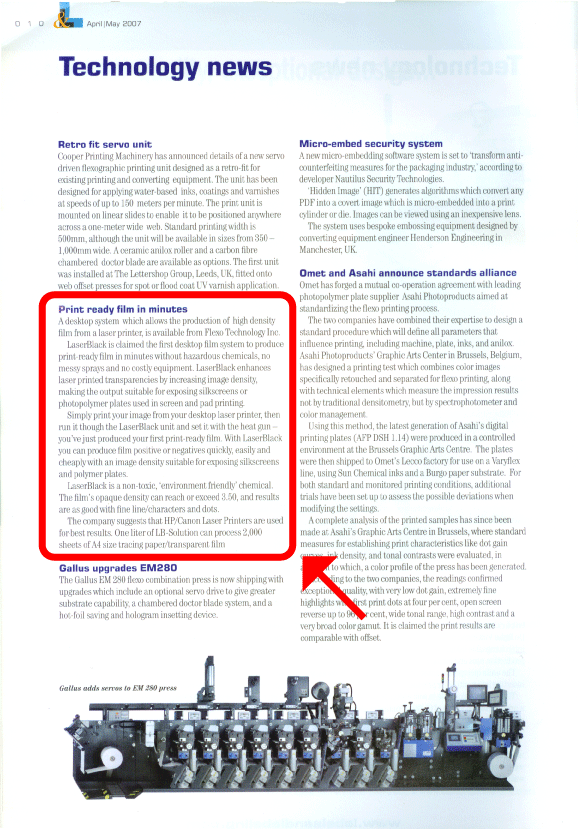

A report from "Label and Labeling" magazine. +zoom





Super Black Toner Cartridge / total solution for your questions

In the case of no more method to improve the darkness from your printer any more,you are very fortunate to have our Super Black Toner Cartridge to help you and slove all your problem.

Not only your can get a darkness result of 20-30 % higher density from your printer but also very even and smooth solid to fill all the gaps between the toner particles, no matter how old is your HP printer. Furthermore the price is cheaper than an oringinal toner cartridge.

Then go through Laser Black Enhancer, the density go up to 3.0 - 3.5 which is good enough to expose the longest exposure time needed 7.00mm photopolymer plate directly.

Thus save money, time and labor, you have to start with it right the way to earn more for yourself.





Premium offer for

World wide distributors

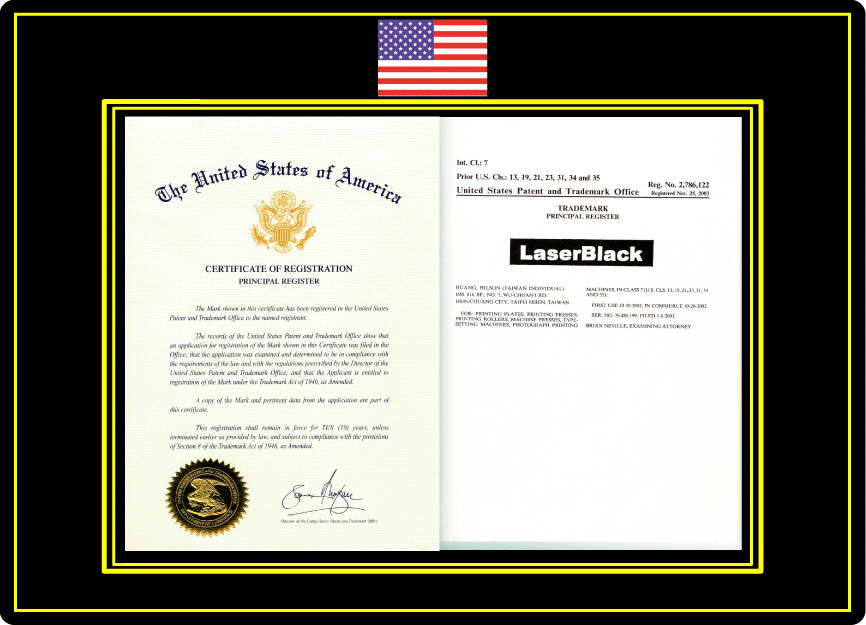

Laser Black Enhancer is a brand new innovative invention, now have been granted Invention Certificate in USA, China, UK and Canada as well as Patents granted by Germany, Japan, France, Korea, Vietnam Australia, , Hong Kong and Taiwan. Patents in other countries are pending and will be granted soon.

Laser Black Enhancer for black density enhancement, created and developed by @Flexo group is now granted patents in Germany, France, UK, Japan, Korea, Brasil, China, HongKong, Taiwan and it is pending for other areas in a total of 20 countries. The marketing of this brand new product around the world has been proceeding by attending the world class / national wide professional printing exhibitions as EmbaxPrint (May 20 2003, Brno / Czech) and IGAS 2003 (Sept. 22, Tokyo / Japan) as well as the INDOMAF (April 24 2003, Jarkata / Indonesia) and Asia Print & Pack (June 6 2003, Bangkok / Thailand). The product has been accepted and welcomed widely by label, screen printers and package printing industries.
Just a laser print on a translucent paper or a trasparent film, go through our Laser Black Enhancer, the print can be 300-400% darkened in black density (over 3.5), no matter it is a positive or negative. This is good enough for any kind of plate exposure, do not have to use image setter or photo-film from a reproduction camera anymore. It is very simple and easy, everybody can do it. Even a most opaque density needed, the longest exposure time for a 7 mm thickness photopolymer plate can be exposing directly for corrugated board printing.
A new long-format printer at the price as economic as an A3 printer can print max.size of 33 x 90 cm is now also available. The LB-3390 Laser printer offers true multi-platform printing, with PostCript and PCL languages built in, the printer can handle jobs from Macintosh, Windows, UNIX and DOS platforms and it is ready to plug into any network right out of a PC. All halftones can be printed consistently regardless of line frequency or resolution and features 35 PostCript fonts, 15 PCL fonts up to 250 download fonts. The printer is designed to last for well, over one-half million pages of output combines speed, reliability and flexibility.
This long-format printer combines with Laser Black A3 Enhancer is already become a
new trend as an Economic Lager Format Film Output System. In addition to its versatile, reliable and economical, saving the invests of image setter, camera, film processor and do not have to use photo-film any more as well as no skillful people is needed, everybody can do it. Many printers have seen the system as a new, low-cost and convenient way as a Film Outputter.
Most important is that we use hi-tech chemical as our Laser Black Enhancing Solution. This is a non-toxic, environmental green and friendly product with a very pleasant and fresh odor, after operation, you may just wash your hands by only tap water. (031001)



Laser Black ENHANCER - A new solution for graphic images

The photographic film used for reproduction has been existed for over 50 years, in the old days, if you want to make a film for printing plate making, you have to use only the traditional way by a reproduction camera, a film processor or even a film copying machine. And have to be done by a skillful technician, not only paying much for the equipments but also time consumes. Nowadays, the job can be done by a film outputing machine either, however, the investment of it, is much more than the above mentioned traditional machine.

With a Laser Black Enhancer, you can use the existing PC (Windows or Mac) with a laser printer which you are currently using, to make prints on a tracing paper or transparent film first then go through our Laser Black Enhancer, now you get a film ready for plate making. Our system can make your B/W prints darkened with an opaque density over 3.5 good for all kinds of plate exposure (even a photopolymer plate in 7 mm thickness). Everybody can do it, do not have to rely on a skilled personel any longer, shorten the processing time as well as no special trainning is needed.

Laser Black Enhaner is now available in A4 (250m/m in width),A3 (360m/m), A1 (760m/m) and A0 (960m/m) with no limitation in length as long as it is a print from a B/W Laser Printer / Plotter. From now on you do not need a film outputing machine or to buy a camera, a copy machine even a film processor. You also do not need to depend on anybody to make film for you, you can make it easily by yourself, reducing your production cost and the time wasteb.

Environmental green and friendly is now an important and necessary issue, Laser Black? Enhancer is a non-toxic, green chemical, after operation just clean your hands with water, which is far, far ahead from polution contained film developing chemicals and toxic solvents.
