@flexo Photopolymer
Plate making machine
for Letterpress Printing
(Model : @A2SS / @A3SS / @A4)
Plates suitable: TORAY / Trelief, TOYOBO/
Printight, OHKA / Miraclon, BASF / Nyloprint etc.
For printing: Letterpress,dry offset, tag, label, computer
form, tampo, pad and vanish coating etc.
Exposure + Washout + Drying 3 in one, all stainless steel
made. ( Except @A4 )

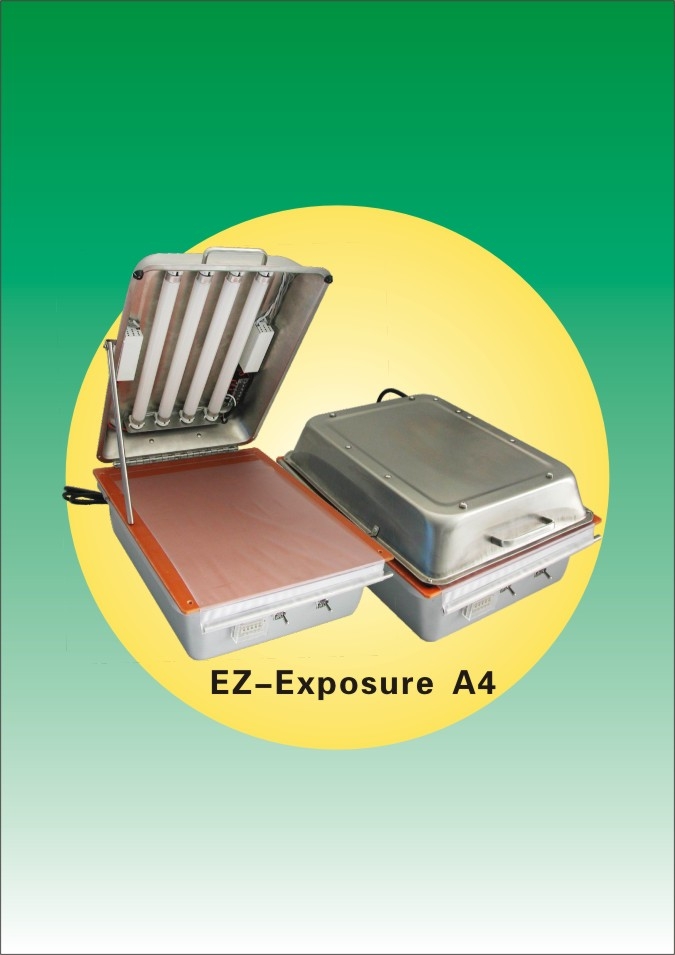

Features of Exposure unit
-Instant light up Philips high intensity lamps
- Unique digital timers for back/main exposure
-Excellent lamps cooling / exhausting system
- Quick vacuum drawdown pump with indicator

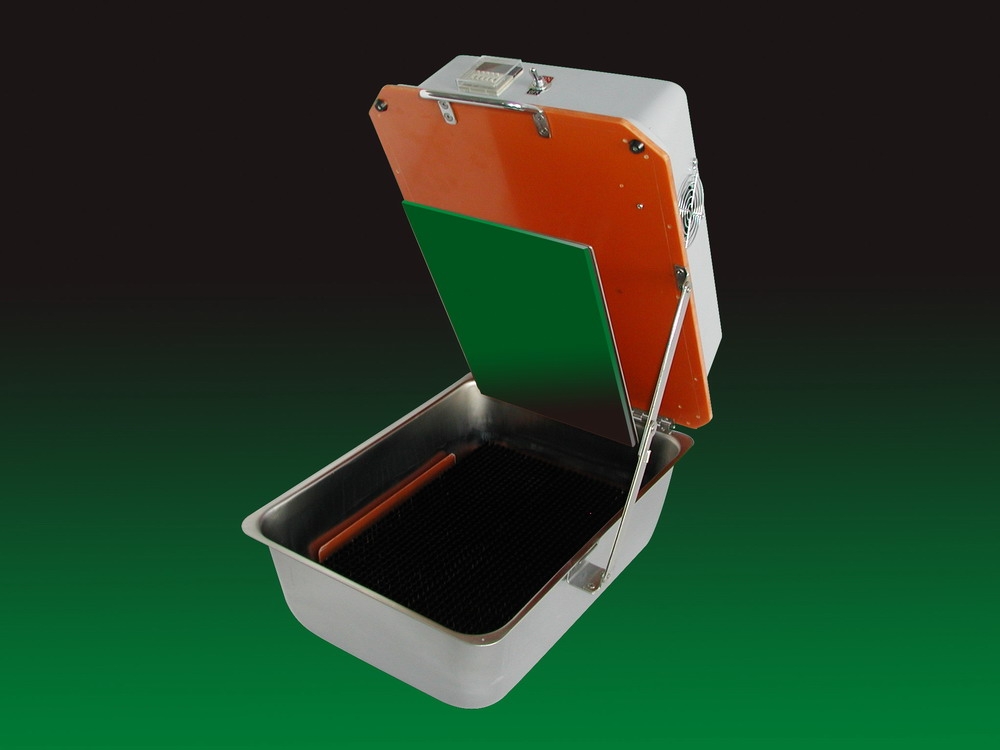

Features of Washout unit
-Flat washout unit 3 in 1 for easy access
- Special bristle good for all kind plates wash
-Automatic control of temperature precisely
- Excellent result for 200 LPI 1% reproduction
Features of Drying unit
-Drying drawer with uniform heat distribution
- Temperature adjustable by a precise controller
-Unique air circulation and exhaustion design
- Over heat sensor for safety and protection
| FOR
LETTERPRESS |
| Water
& Alchohol Washout Plates |
| Plate
Suitable: |
| Toyobo
printight, Tokyo ohka miraclon, Toray torelief, Basf nyloprint etc. |
| For
Printing: |
| Letterpress,
dry offset tag, lable, computer form, tampo, pad printing and vanishing |
| Model: |
|
@A4 |
| @A3SS |
| @A2SS |
| Exposure + Drying +
Washout , 3 in 1. |
 |
@A4
/ @A3
For
Label/Card/Pad/Stamp |
@A4 / A3LT-for
letterpress
@A4 / A3LR-for liquid resin
@A4 / A3FL-for flexography
@A4 / A3FB-for @FlexoBag |
| MODEL |
UNIT |
MEASUREMENT(mm) |
N/W |
G/W |
WATT |
| @A4
LT |
EXPOSING+DRYING
+WASHOUT / 3 in 1 |
760
x 650 x 400 |
56KG |
90KG |
1KW |
| @A3
LT |
940
x770 x 400 |
85KG |
125KG |
1.2KW |
(New modern design CAD/CNC
cut body with outdoor A/C treatment / paint plus stainless steel tank
all unit rust free. Warranty for ever free
for first year.High intensity original Philips lamp good for 200LPI
1% dot reproduction)
 |
@A3SS
All
stainless steel.
Exposing+drying+washout.
3
in one design very compack.
Simple
operation, best plate result. |
Whole
system includes exposing unit, washout unit, drying unit.
| MODEL |
UNIT |
MEASUREMENT(mm) |
N/W |
G/W |
WATT |
| @A3SS |
EXPOSING+DRYING
+WASHOUT |
600
x600 x 900 |
100KG |
190KG |
1.0KW |
 |
@A2SS
All
stainless steel.
Exposing+drying+washout.
3
in one design very compack.
Simple
operation, best plate result. |
Whole
system includes exposing unit, washout unit, drying unit.
| MODEL |
UNIT |
MEASUREMENT(mm) |
N/W |
G/W |
WATT |
| @A2SS |
EXPOSING+DRYING
+WASHOUT |
900
x 900 x 1120 |
150KG |
250KG |
1.2KW |
|
