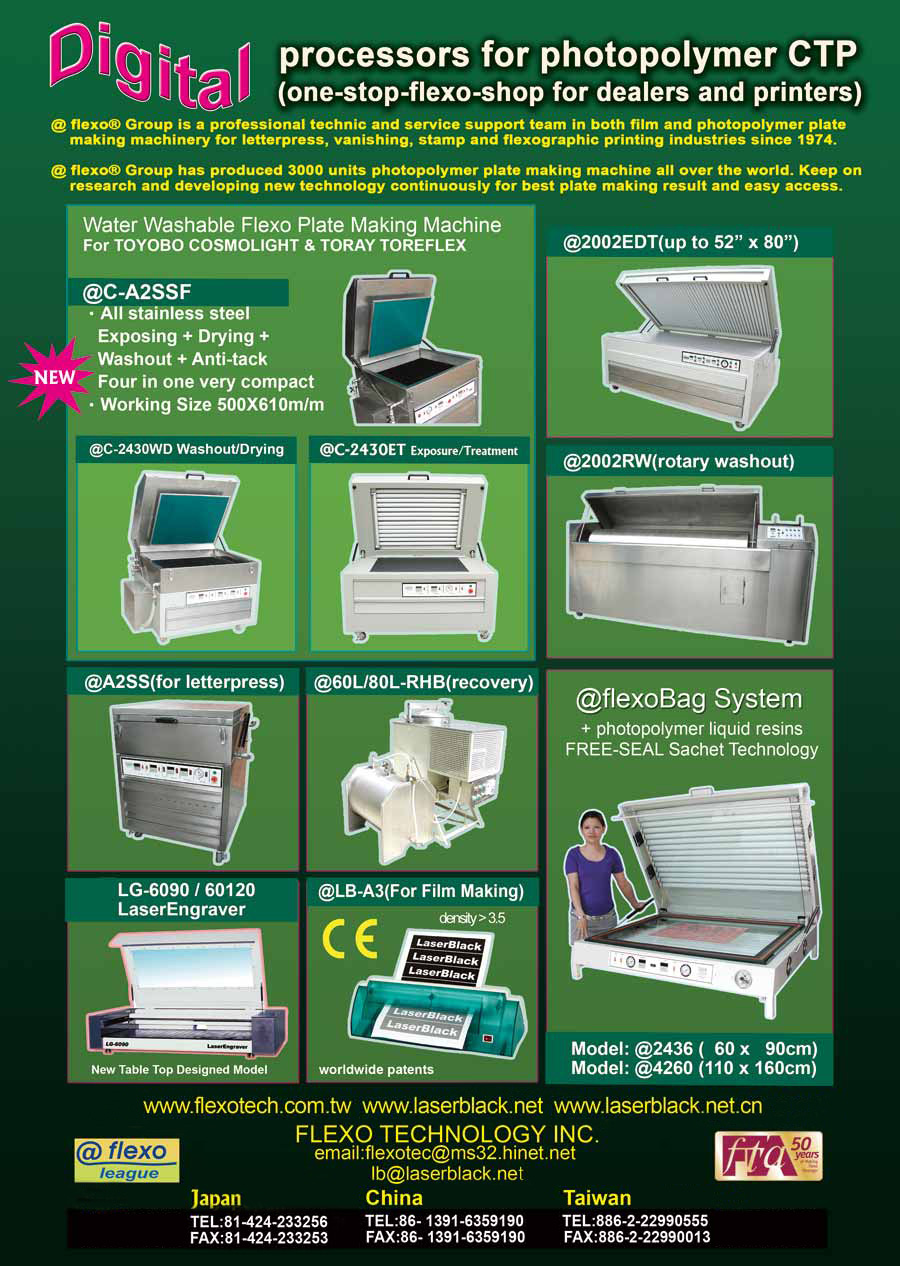

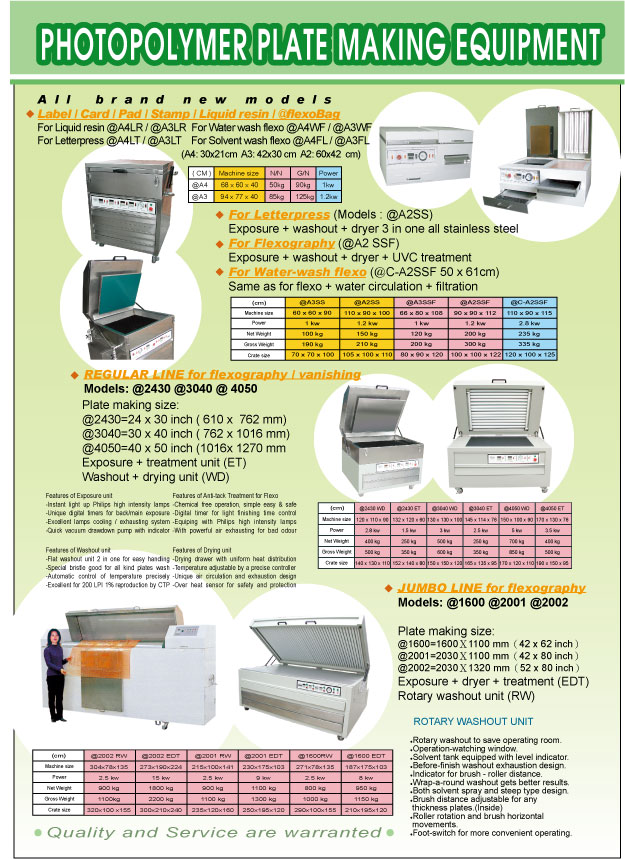

Special features
@flexo
Photopolymer Plate making machine
for Flexo Printing
(Model : @A2SSF / @A3SSF / @A4SSF)
(@2430 / @3040 / @4050 / @1600 / @2001 / @2002)
Plates suitable: DuPont, Kodak, BASF, Okaflex,
AFP, JET etc.
For printing: Label, film, paper, corrugated board, paper carton, knitting
bag, Tetra pak etc.
Exposure / Washout / Drying /Treatment (Light finishing) in complete
functions.
Features of Exposure unit
-Instant light up Philips high intensity lamps
- Unique digital timers for back/main exposure
-Excellent lamps cooling / exhausting system
- Quick vacuum drawdown pump with indicator
Features of Washout
unit
-Very easy access design
- Special bristle good for all kind plates washout
-Suitable for Perc+NBA and Green chemicals
- Excellent result for 175 LPI 1% reproduction
Features
of Drying unit
-Drying drawer with uniform heat distribution
- Temperature adjustable by a precise controller
-Unique air circulation and exhaustion design
- Over heat sensor for safety and protection
Features of Treatment unit
Chemical free operation, simple, easy and save
- Digital timer for light finishing control
Philips UVC high intensity lamps equipped
- With powerful air exhausting for big size models
| FOR
FLEXOGRAPHY |
| Solvent
Washout PlatesWater & Alchohol Washout Plates |
| Plate
Suitable: |
| DuPont
/ Cyrel,Ohkaflex, Flex-Light, Asahi / AFP, BASF / Nyloflex, JET.. |
| For
Printing: |
| Flexography,
Label, PE / PP film, paper, corrugated board, paper carton, knitting
bag, tetra pak... |
| Models: |
| @A4 FL |
( 21 x 30 cm ) |
| @A3 FL |
( 30 x 42cm ) |
| @A3SSF |
( 30 x 42cm ) |
| @A2SSF |
( 42 x 60 cm ) |
| @C-A2SSF |
( 50 x 61 cm )( For water washout flexo plates ) |
| @2430 |
( 24 x 30 in ) |
| @3040 |
( 30 x 40 in ) |
| @4050 |
( 40 x 50 in ) |
| @1600 |
( 1.1 x 1.6 m )( 42 x 62 inch ) |
| @2001 |
( 1.1 x 2.0 m )( 42 x 80 inch ) |
| @2002 |
( 1.3 x 2.0 m )( 52 x 80 inch ) |
 |
@A4
FL / @A3FL
For
Label/Card/Pad/Stamp |
@A4 / @A3LT-for letterpress
@A4 / @A3LR-for liquid resin
@A4 / @A3FL-for flexography
@A4 / @A3FB-for @FlexoBag |
| MODEL |
UNIT |
MEASUREMENT(mm) |
N/W |
G/W |
WATT |
| @A4
FL |
EXPOSING+DRYING
+WASHOUT + TREATMENT
|
760
x 650 x 400 |
56KG |
90KG |
1KW |
|
@A3
FL |
940
x 770x 400 |
85KG |
125KG |
1.2KW |
(New modern design CAD/CNC
cut body with outdoor A/C treatment / paint plus stainless steel tank
all unit rust free. Warranty for ever free
for first year.High intensity original Philips lamp good for 200LPI
1% dot reproduction)
 |
@A3SSF
All
stainless steel.
Exposing+drying+washout+treatment.
4
in one design very compact.
Simple
operation, best plate result. |
| MODEL |
UNIT |
MEASUREMENT(cm) |
N/W |
G/W |
WATT |
| @A3SSF |
EXPOSING+DRYING
+WASHOUT+TREATMENT |
66
x 80 x 108 |
120KG |
220KG |
1.0KW |
 |
@A2SSF
All
stainless steel.
Exposing+drying+washout+treatment.
4
in one design very compact.
Simple
operation, best plate result. |
| MODEL |
UNIT |
MEASUREMENT(cm) |
N/W |
G/W |
WATT |
| @A2SSF |
EXPOSING+DRYING
+WASHOUT+TREATMENT |
90
x 90 x 112 |
200KG |
300KG |
1.2KW |
 |
@C-A2SSF
All
stainless steel.
Exposing+drying+washout+treatment.
With
water circulation & filtration system.
Simple
operation, best plate result. |
| MODEL |
UNIT |
MEASUREMENT(cm) |
N/W |
G/W |
WATT |
| @C-A2SSF |
EXPOSING+DRYING
+WASHOUT+TREATMENT |
120
x 100 x 125 |
235KG |
335KG |
2.8KW |
Special features
@flexo Photopolymer Plate making machine
for Water Wash Flexo Plate
(Model : @C-A2SSF / @C-A3SSF / @C-A4SSF / @C-2430 / @C-3040)
Plates suitable: TOYOBO / Cosmolight, TORAY /
Toreflex etc.
For printing: Label, film, paper, corrugated board, paper carton,
knitting bag, Tetra pak etc.
Exposure + Washout + Drying +Treatment (Light finishing) in
complete set
Features of Exposure unit
-Instant light up Philips high intensity lamps
- Unique digital timers for back/main exposure
-Excellent lamps cooling / exhausting system
- Quick vacuum drawdown pump with indicator
Features of Washout unit
-High temperature water washout
- With water circulation system
-Special arrangements of brush
- With residue filtration system
Features of Drying unit
-Drying drawer with uniform heat distribution
- Temperature adjustable by a precise controller
-Unique air circulation and exhaustion design
- Over heat sensor for safety and protection
Features of Treatment unit
Chemical free operation, simple, easy and save
- Digital timer for light finishing control
Philips UVC high intensity lamps equipped
- With powerful air exhausting for big size models
|
 |
@2436
ET
( 24 X 36 inch ) 610 x 915 mm
@3040
ET
( 30 x 40 inch ) 762 x 1016 mm
@4050 ET
( 40 x 50 inch ) 1016 x 1270 mm
Features of Exposure unit
-Instant light up Philips high intensity lamps
- Unique digital timers for back/main exposure
-Excellent lamps cooling / exhausting system - Quick vacuum drawdown
pump with indicator
Features of Treatment unit
Chemical free operation, simple, easy and save
- Digital timer for light finishing control
Philips UVC high intensity lamps equipped - With powerful air
exhausting for big size models
|
| MODEL |
UNIT |
MEASUREMENT(cm) |
N/W |
G/W |
WATT |
| @2436
ET |
EXPOSING+TREATMENT |
132
x 120 x 60 |
250KG |
350KG |
1.5KW |
| @3040
ET |
EXPOSING+TREATMENT |
145
x 114 x 76 |
300KG |
450KG |
2.5KW |
| @4050
ET |
EXPOSING+TREATMENT |
120
x 110 x 90 |
400KG |
500KG |
3.5KW |
 |
@2436
WD
( 24 x 36 inch )
@3040
WD
( 30 x 40 inch )
@4050 WD
( 40 x 50 inch )
Features of Washout unit
-Very easy access design - Special bristle good
for all kind plates washout
-Suitable for Perc+NBA and Green chemicals - Excellent result
for 175 LPI 1% reproduction
Features of Drying unit
-Drying drawer with uniform heat distribution -
Temperature adjustable by a precise controller
-Unique air circulation and exhaustion design - Over heat sensor
for safety and protection
|
| MODEL |
UNIT |
MEASUREMENT(cm) |
N/W |
G/W |
WATT |
| @2436
WD |
WASHOUT+DRYING
|
120
x 110 x 90 |
400KG |
500KG |
2.8KW |
| @3040
WD |
WASHOUT+DRYING |
130
x 130 x 100 |
500KG |
600KG |
3KW |
| @4050
WD |
WASHOUT+DRYING |
150
x 100 x 90 |
700KG |
850KG |
5KW |
 |
@2002
EDT
(
1.3 x 2.0 m )
@2001
EDT
( 1.1 x 2.0 m )
@1600 EDT
( 1.1 x 1.6 m )
Features of Exposure unit
-Instant light up Philips high intensity lamps
- Unique digital timers for back/main exposure
-Excellent lamps cooling / exhausting system - Quick vacuum drawdown
pump with indicator
Features of Drying unit
-Drying drawer with uniform heat distribution -
Temperature adjustable by a precise controller
-Unique air circulation and exhaustion design - Over heat sensor
for safety and protection
Features of Treatment unit
Chemical free operation, simple, easy and save
- Digital timer for light finishing control
Philips UVC high intensity lamps equipped - With powerful air
exhausting for big size models
|
| MODEL |
UNIT |
MEASUREMENT(cm) |
N/W |
G/W |
WATT |
| @2002
EDT |
EXPOSING+DRYING
+TREATMENT |
273
x 190 x 224 |
1800KG |
2200KG |
15KW |
| @2001
EDT |
EXPOSING+DRYING
+TREATMENT |
230
x 175 x 103 |
1100KG |
1300KG |
9KW |
| @1600
EDT |
EXPOSING+DRYING
+TREATMENT |
187
x 175 x 103 |
950KG |
1150KG |
8KW |
 |
@2002
RW
(
1.3 x 2.0 m )
@2001
RW
( 1.1 x 2.0 m )
@1600 RW
( 1.1 x 1.6 m )
ROTARY WASHOUT UNIT
•Rotary washout to save
operating room.
•Operation-watching window.
•Solvent tank equipped with level indicator.
•Before-finish washout exhaustion design.
•Indicator for brush - roller distance.
•Wrap-a-round washout gets better results.
•Both solvent spray and steep type design.
•Brush distance adjustable for any thickness lates.(Inside)
•Roller rotation and brush horizontal movements.
|
| MODEL |
UNIT |
MEASUREMENT(cm) |
N/W |
G/W |
WATT |
| @2002
RW |
ROTARY
WASHOUT |
304
x 78 x 135 |
900KG |
1100KG |
2.5KW |
| @2001
RW |
ROTARY
WASHOUT |
215
x 100 x 141 |
900KG |
1100KG |
2.5KW |
| @1600
RW |
ROTARY
WASHOUT |
271
x 78 x 135 |
800KG |
1000KG |
2.5KW |
|
