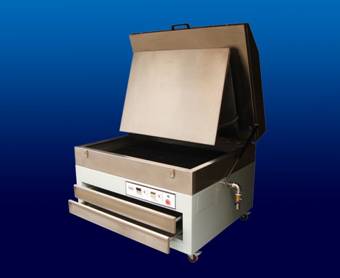

@C-A2SSF
All stainless steel.
Exposing+drying+washout+treatment.
With water circulation & filtration system.
Simple operation, best plate result. |
|
MODEL |
UNIT |
MEASUREMENT(cm) |
N/W |
G/W |
WATT |
| @C-A2SSF |
EXPOSING+DRYING
+WASHOUT+TREATMENT |
120 x 100 x 125 |
235KG |
335KG |
2.8KW |
Special features
@flexo Photopolymer Plate making machine
for Water Wash Flexo Plate
(Model : @C-A2SSF / @C-A3SSF / @C-A4SSF / @C-2430 / @C-3040)
Plates suitable: TOYOBO / Cosmolight, TORAY / Toreflex etc.
For printing: Label, film, paper, corrugated board, paper carton, knitting bag, Tetra pak etc.
Exposure + Washout + Drying +Treatment (Light finishing) in complete set

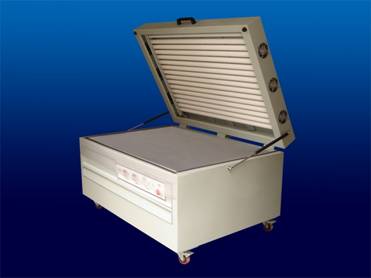

Features of Exposure unit
-Instant light up Philips high intensity lamps
- Unique digital timers for back/main exposure
-Excellent lamps cooling / exhausting system
- Quick vacuum drawdown pump with indicator
Features of Washout unit
-High temperature water washout
- With water circulation system
-Special arrangements of brush
- With residue filtration system
Features of Drying unit
-Drying drawer with uniform heat distribution
- Temperature adjustable by a precise controller
-Unique air circulation and exhaustion design
- Over heat sensor for safety and protection
Features of Treatment unit
Chemical free operation, simple, easy and save
- Digital timer for light finishing control
Philips UVC high intensity lamps equipped
- With powerful air exhausting for big size models
|
Models: |
@C-A2SSF |
( 50 x 64 cm ) ( For water washout flexo plates ) |
@C-2436 |
( 62 x 92 cm ) ( For water washout flexo plates ) |
@C-3040 |
( 78 x 104 cm ) ( For water washout flexo plates ) |
@C-4050 |
(104 x 130 cm ) ( For water washout flexo plates ) |
@flexo Water wash flexo plate makers Model: @C - 243 6 / @ C - 3040 / @ C - 4050
Equipment information 130131
@flexo Water wash flexo plate makers
Model: @A2SSF / @C- 243 6 / @ C - 3040 / @ C - 4050
Equipment information 130131
|
@ C -A2SSF |
@ C - 243 6 ET |
@ C - 243 6 WD |
@ C - 3040 ET |
@ C - 3040 WD |
@ C - 4050 ET |
@ C - 4050 WD |
Plate Making Size (cm) |
50 ,0 x 61,5 |
61,0 x 91,5 |
61,0 x 91,5 |
76,2 x 101,6 |
76,2 x 101,6 |
101,6 x 127,0 |
101,6 x 127,0 |
Measurement of Equipment (cm) |
66 x 8 0 x 108 |
132 x 120 x 76 |
120 x 110 x 90 |
145 x 1 20 x 76 |
130 x 1 1 0 x 9 0 |
170 x 1 2 0 x 76 |
150 x 1 1 0 x 90 |
Power (KW) |
2 , 8 |
1,5 |
2,8 |
2,5 |
3,0 |
3,5 |
5,0 |
Net Weight (Kg) |
235 |
250 |
27 0 |
300 |
500 |
400 |
700 |
Gross Weight (Kg) |
335 |
350 |
37 0 |
400 |
600 |
500 |
850 |
Crate Size (cm) |
1 20 x 1 0 0 x 75 |
152 x 140 x 80 |
140 x 130 x 110 |
165 x 135 x 95 |
150 x 150 x 120 |
190 x 150 x 95 |
1 85 x 1 75 x 1 2 0 |
|
